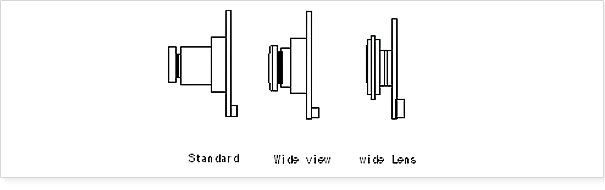

::: Small CMOS,CCD module Camera(standard, automobile, wide view) :::
|
1. Small CMOS module / CCD module
2. High sensitivity
3. VGA/D1/960H PIXELS
4. Auto Electronic Shutter
5. Auto White Balance
6. application : back view camera, CCTV, others
7. ODM, OEM |
|
|
|
 |
| ITEM |
DESCRIPTION |
ICM-X70PX(CMOS Module)
300K Pixels |
ICM-5019(CCD Module)
520K/610K Pixels |
| 1.Image Device |
Interline Transfer |
| 2.Total Pixels |
VGA : 648(H) X 488(V)
D1 : 762(H) X 504(V)
960H : 976(H) X 504(V)
|
NTSC : 1020(H) X 508(V)
PAL : 1020(H) X 596(V) |
| 3.Scanning System |
2 : 1 Interlace |
| 4.Synchonization System |
internal |
| 5.Horizontal Resolution |
400-600 TV Lines |
700 TV Lines |
| 6.Sensitivity |
0.3 Lux |
0.1 Lux |
| 7.Electronic Iris (Linear) |
Auto 1/60 ~ 1/100,000sec |
Auto 1/60 ~ 10,000sec |
| 8.Signal Processing |
DSP |
| 9.Video Output |
1.0Vp-p ( - 10 ℃ ~ + 50℃ ), 75ohm |
| 10.S/N Ratio |
More than 46dB |
| 11.Power Supply |
12Vdc(9V~18V)
5V DC(factory setting) |
12Vdc(9V~16V) |
| 12.Power Consumption |
Max 40mA / 100mA |
Max 100mA |
| 13.Operating Temperature |
- 10 ℃ ~ +50 ℃ |
| 14.Dimension |
24 X 15mm or OEM/ODM |
19 X 19mm tow board |
| 15.Applied Lens |
1.8mm or options |
3.6mm or options |
| 16.Connector |
1.27mm 5pin |
1.27mm 3pin |
|
|
|
|
|
|
|
|
|
