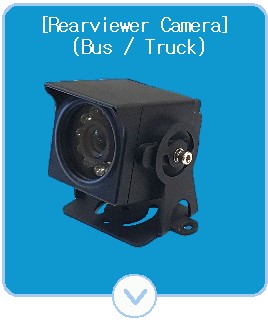

::: Rearviewer camera (Bus/Truck):::
1. 400K/ 500K/ 520K/ 2.1M Pixels
2. Auto Electronic Shutter
(NTSC: 1/60 ~ 1/100,000, PAL: 1/50 ~ 1/100,000)
3. Auto White Balance
4. DSP(Digital Signal Processing)
5. IRLED 11pcs
5. DC12V / DC24V
ITEM
DESCRIPTION
1CA-650RWI
400K/ 500K/ 520K Pixels
ICA-H650RWI
2.1M Pixels
1.Image Device
Interline Transfer CCD
2.Total Pixels
400k : 762(H) X 504(V)
500k : 976(H) X 504(V)
520kCCD: 1020(H)x 508(V)
AHD : 1944(H) X 1094(V)
3.Scanning System
2 : 1 interlace
4.Synchronization System
Internal
5.Horizontal Resolution
500-700 TV Lines
AHD 1080(30)
6.Sensitivity
0.01 LUX
7.Electronic Iris
Auto 1/60 ~ 1/100,000sec
Auto 1/60~ 1/10,000
8.Signal Processing
DSP
9.Video Output
1.0Vp-p(±) 75ohm CVBS out
1.0Vp-p(±) 75ohm AHD out
10.S/N Ratio
More than 46dB
11.Power Supply
12V / 24Vdc
12.Power Consumption
Max 250mA (w/IR LED)
13.Operating Temperature
- 10 ℃ ~ +50 ℃
14.Operating Humidity
Max RH 95%

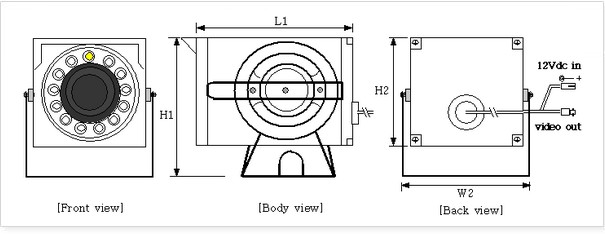

15.Dimension
540(H1) X 530(L1)/ 450(H2) X 520(W2)mm
16.Applied Lens
2.9mm
17.Weight
450g
