| ::: Mega Pixels cctv Module(Full HD) ::: |
1.Mega pixels CCTV Module
2. Auto Electronic Shutter
3. Auto White Balance
4. ICR support
6. IR LED control support
7. PCB size: 32x 32mm
8. Availabe ODM, OEM |
|
|
|
 |
| ITEM |
DESCRIPTION |
| NTSC(ICM-H2032MN)
|
PAL(ICM-H2032MN)
|
| 1.Image Device |
Interline Transfer |
| 2.Effective Pixels |
1944(H) X 1092(V) |
| 3.Scanning System |
2 : 1 Interlace |
| 4.Synchonization System |
internal |
| 5.Horizontal Resolution |
AHD 1080P(30) |
| 6.Sensitivity |
0.1 Lux |
| 7.Electronic Iris (Linear) |
Auto (NTSC : 1/60 ~ 1/10,000sec PAL : 1/50 ~ 1/10,000sec) |
| 9.Video Output |
1.0Vp-p ( - 10 ℃ ~ + 50℃ ), 75ohm
AHD,CVBS,THD, CHD(default CVBS) |
| 10.S/N Ratio |
More than 46dB |
| 11.Power Supply |
12 V DC(9V ~ 16V) |
| 12.Power Consumption |
Max 110mA |
| 13.Operating Temperature |
- 10 ℃ ~ +50 ℃ |

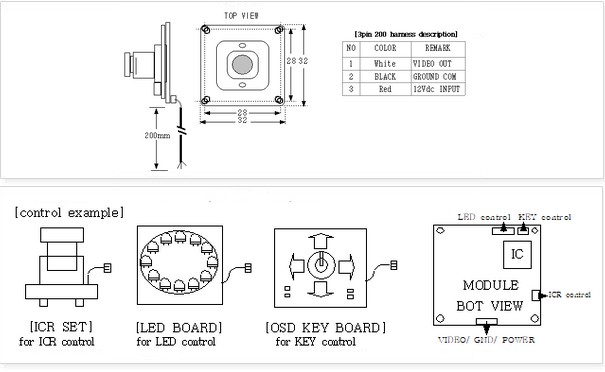

| 15.Dimension |
32x 32mm |
| 16.Applied Lens |
3.6mm, or option(verfocal and other lens) |
| 17.Option |
ICR LENS control / OSD setting |
|
|
|
|
|
|
|
|
|
