::: Commercial Dome Camera ::
1.Indoor
2. 520K/610K CCD / 2.1M pixels CMOS
3. DSP (Digital Signal Processing)
4. Auto Electronic Shutter
5. Auto White Balance
ITEM
DESCRIPTION
ICA-600D
520K / 600K PIXELS
ICA-H600D
2.1 Mega PIXELS
1.Image Device
Interline Transfer CCD
2.Total Pixels
NTSC : 1020(H) X 508(V)
PAL : 1020(H) X 596(V)
AHD : 1956(H) X 1266(V)
3.Scanning System
2 : 1 interlace
4.Synchronization System
Internal
5.Horizontal Resolution
700 TV Lines
AHD 1080P(30)
6.Sensitivity
0.1 LUX
0.3 LUX
7.Electronic Iris
AUTO(1/60~1/100,000sec)
AUTO(1/6-~1/10,000sec)
8.Signal Processing
DSP
9.Video Output
1.0Vp-p(±10%), 75ohm CVBS out
1.0Vp-p(±10%), 75ohm AHD out
10.S/N Ratio
More than 46dB
11.Power Supply
12V DC(9V ~ 14V)
12.Power Consumption
Max100mA
13.Operating Temperature
- 10 ℃ ~ +50 ℃
14.Operating Humidity
Max RH 95%

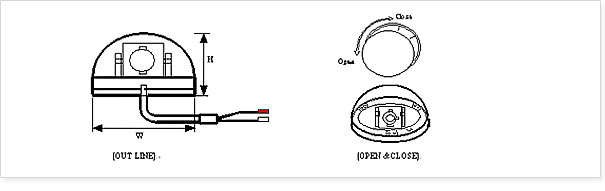

15.Dimension
120(W) X 77(H)
16.Applied Lens
4mm
17.Weight
200g
