::: CMOS Module camera :::
|
1. High resolution and Low illumination
2. 540 / 640 TV lines
3. Electronic Shutter
(EIA: 1/60 ~ 1/100000sec, CCIR : 1/50 ~ 1/100000sec)
4. size :32mm x 32mm
5. Built-in Aperture Compensation
6. Available C/CS MOUNT |
|
|
|
 |
| ITEM |
DESCRIPTION |
| ICM-4032PX(400K Pixels)
|
ICM-9032PX(500K Pixels)
|
| 1.Image Device |
Interline Transfer |
| 2.Effective Pixels |
762(H) x 504(V) |
976(H) x 504(V) |
| 3.Scanning System |
2 : 1 Interlace |
| 4.Synchonization System |
internal |
| 5.Horizontal Resolution |
540 TV Lines |
640 TV Lines |
| 6.Sensitivity |
0.3 Lux |
| 7.Electronic Iris (Linear) |
Auto (ntsc :1/60 ~ 1/100,000 sec pal :1/50 ~ 1/100,000 sec)
|
| 8.Video Output |
1.0 Vp-p( -10% ~ +10%), 75 ohm |
| 9.S/N Ratio |
more than 46 dB |
| 10.Power Supply |
12V DC ( 7V ~ 16V)/ 5V DC(factory setting) |
| 11.Power Consumption |
max 40mA/ 1120mA |
| 12.Operating Temperature |
- 10 ℃ ~ +50 ℃ |

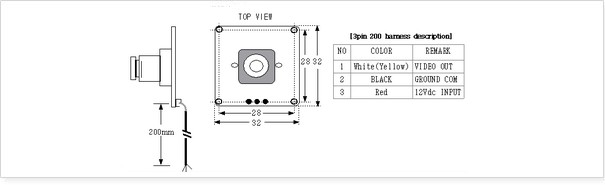

| 13.Dimension |
32 x 32mm |
| 14.Applied Lens |
3.6mm, / Option other lens |
|
|
|
|
|
|
|
|
|
