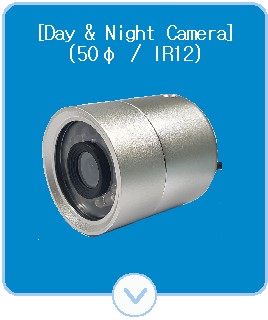

| ::: Day & Night Camera(50φ, IR12) ::: |
1. Indoor / Outdoor for dark Place
2. 520K/610K CCD / 2.1M pixels CMOS
3. Auto on/off IRLED by sensor
4. DSP(Digital Signal Processing)
5. Auto Electronic Shutter
6. Auto White Balance
7. Including Bracket
8. 12pcs IR LED |
|
|
|
 |
| ITEM |
DESCRIPTION |
ICA-600Wi
520K / 600K PIXELS |
ICA-H600Wi
2.1 Mega PIXELS |
| 1.Image Device |
Interline Transfer CCD |
| 2.Total Pixels |
NTSC : 1020(H) X 508(V)
PAL : 1020(H) X 596(V)
|
AHD : 1956(H) X 1266(V)
|
| 3.Scanning System |
2 : 1 interlace |
| 4.Synchronization System |
Internal |
| 5.Horizontal Resolution |
700 TV Lines |
AHD 1080P(30) |
| 6.Sensitivity |
0.01 LUX |
| 7.Electronic Iris |
AUTO(1/60~1/100,000sec) |
AUTO(1/6-~1/10,000sec) |
| 8.Signal Processing |
DSP |
| 9.Video Output |
1.0Vp-p(±10%), 75ohm CVBS out |
1.0Vp-p(±10%), 75ohm AHD out |
| 10.S/N Ratio |
More than 46dB |
| 11.Power Supply |
12V DC(9V ~ 14V) |
| 12.Power Consumption |
Max 300mA
|
| 13.Operating Temperature |
- 10 ℃ ~ +50 ℃ |
| 14.Operating Humidity |
Max RH 95%
|

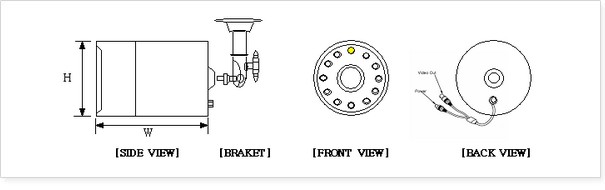

| 15.Dimension |
50ø(H) X 56mm(W) |
| 16.Applied Lens |
4mm |
| 17.Weight |
280g |
|
|
|
|
|
|
|
|
|
