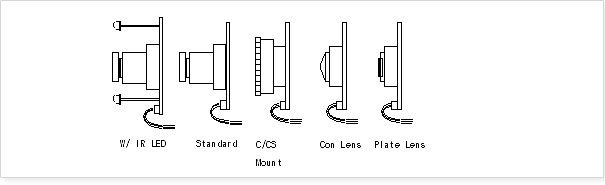

::: CCD MODULE (Pinhole, Standard, C/CS) ::: 1. High Sensitivity and low illumination 2. Electronic Shutter ( ntsc : 1/60 ~ 1/100,000)     ( pal : 1/50 ~ 1/100,000) 3. Built-in Aperture Compensation Circuit 4. various type - Pin hole, C/CS mount, IR LED Module 5. availalbe OEM,ODM module 6. DC 12V input ITEM DESCRIPTION ICM-4032(410K/470K pixels) ICM-6032(520K/610K Pixels) 1.Image Device Interline Transfer CCD 2.Total Pixels NTSC---->811(H) x 507(V) PAL----->895(H) x 595(V) NTSC---->1020(H) x 508(V) PAL----->1020(H) x 596(V) 3.Scanning System 2 : 1 Interlace 4.Synchonization System internal 5.Horizontal Resolution 600 TV Lines 700 TV Lines 6.Sensitivity under 0.1 Lux 7.Electronic Iris (Linear) Auto (ntsc :1/60 ~ 1/100,000 sec pal:1/50 ~ 1/100,000 sec) 8.Video Output 1.0 Vp-p( -10% ~ +10%), 75 ohm 9.S/N Ratio more than 46 dB 10.Power Supply 12 V DC ( 9V ~ 16V) 11.Power Consumption max 110mA (Without LED) 12.Operating Temperature - 10 ℃ ~ +50 ℃ 13.Operating Humidity Max RH 95% 14.Dimension 32x 32mm / or OEM 15.Applied Lens Regular Lens F : 3.6mm, 4.3mm Pinhole Lens F : 3.7 , 5.5 mm, C/CS mount ( Without Lens )
