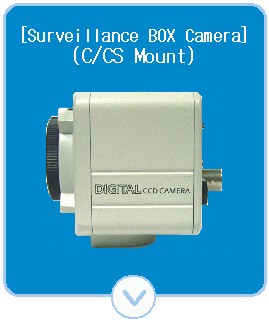

| ::: Surveillance BOX Camera(C/CS MOUNT) ::: |
1.Small Compact BOX Camera
2. DC / Video IRIS Control
3. Auto White Balance
4. Built-in Aperture Compensation
5. DSP(Digital Signal Processing)
6. BLC, MIR on/off |
|
|
|
 |
| ITEM |
DESCRIPTION |
NTSC(ICA-331)
410K Pixels |
PAL(ICA-331)
470K Pixels |
| 1.Image Device |
Interline Transfer CCD |
| 2.Total Pixels |
NTSC : 811(H) X 507(V) |
PAL : 795(H) X 596(V) |
| 3.Scanning System |
2 : 1 interlace |
| 4.Synchronization System |
Internal |
| 5.Horizontal Resolution |
570 TV lines |
| 6.Sensitivity |
0.1 Lux |
| 7.Electronic Iris |
Auto(ntsc:1/60 ~ 1/100,000 sec pal:1/50 ~ 1/100,000 sec) |
| 8.Video Output |
1.0Vp-p (-10% ~ +10%), 75ohm |
| 9.S/N Ratio |
More than 46dB |
| 10.Power Supply |
12 V DC(9V ~ 14V) |
| 11.Power Consumption |
Max 140mA |
| 12.Operating Temperature |
- 10 ℃ ~ +50 ℃ |
| 13.Operating Humidity |
Max 95 RH 95% |
| 14.Lens control |
Available Video drive / DC drive [DC / EE /VD model]
DC -> When using DC type AUTO IRIS
EE -> When using Fixed IRIS Lens Using-(default type EE)
VD -> When using Video Driver AUTO IRIS Lens |
| 15.Mirror |
On / Off |
| 16.BLC |
On / Off |

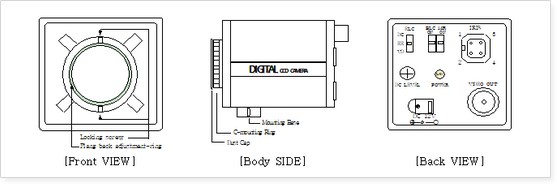

| 17.Dimension |
50mm(H) X 50mm(W) x 50mm(L) |
| 18.Weight |
200g |
|
|
|
|
|
|
|
|
|
