::: Bullet Color Camera :::
1. Indoor for narrow place
2. weather proof
3. Auto Electronic Shutter
(NTSC: 1/60 ~ 1/100,000, PAL: 1/50 ~ 1/100,000)
4. 410K/470K Pixels CCD
5. DSP(Digital Signal Processing)
ITEM
DESCRIPTION
NTSC (ICA-4500W)
410k Pixels
PAL (ICA-4500W)
470K Pixels
1.Image Device
Interline Transfer CCD
2.Total Pixels
NTSC : 1024(H) X 508(V)
PAL : 1024(H) X 596(V)
3.Scanning System
2 : 1 interlace
4.Synchronization System
Internal
5.Horizontal Resolution
570 TV lines
6.Sensitivity
0.1 Lux
7.Electronic Iris
Auto(NTSC:1/60 ~ 1/100,000sec PAL:1/50 ~ 1/100,000sec)
8.Signal Processing
DSP
9.Video Output
1.0Vp-p, 75ohm CVBS out
10.S/N Ratio
More than 46dB
11.Power Supply
12 V DC(9V ~ 14V)
12.Power Consumption
Max 100mA
13.Operating Temperature
- 10 ℃ ~ +50 ℃
14.Operating Humidity
Max RH 95%

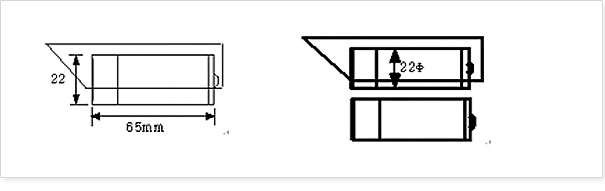

15.Dimension
22mm x 65mm
16.Applied Lens
3.6mm & Others
17.Weight
220g
