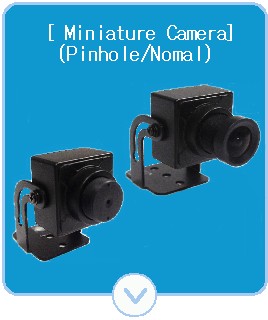

::: Miniature CC Camera [pinhole/ normal (small type)] :::
1. size : 22 x 22mm
3. 400K/500K /600K / 2.1M pixels
4. Auto Electronic Shutter
(NTSC: 1/60 ~ 1/100,000, PAL: 1/50 ~ 1/100,000)
5. Auto White Balance
6. DSP(Digital Signal Processing)
7. DC12V
ITEM
DESCRIPTION
ICA-750S
400K/ 500K/ 600K PIXELS
ICA-H750S
2.1 Mega PIXELS
1.Image Device
Interline Transfer CCD
2.Total Pixels
400K: 762(H) x 504(v)
500k: 976(H) X 504(V)
520k/600K CCD: 1020(H) x 508(V)
AHD : 1956(H) X 1266(V)
3.Scanning System
2 : 1 interlace
4.Synchronization System
Internal
5.Horizontal Resolution
500-700 TV Lines
AHD 1080P(30)
6.Sensitivity
0.1 LUX
0.3 LUX
7.Electronic Iris
AUTO(1/60~1/100,000sec)
AUTO(1/6-~1/10,000sec)
8.Signal Processing
DSP
9.Video Output
1.0Vp-p(±10%), 75ohm CVBS out
1.0Vp-p(±10%), 75ohm AHD out
10.S/N Ratio
More than 46dB
11.Power Supply
12V DC(9V ~ 14V)
12.Power Consumption
Max 50mA / 100mA
13.Operating Temperature
- 10 ℃ ~ +50 ℃
14.Operating Humidity
Max RH 95%

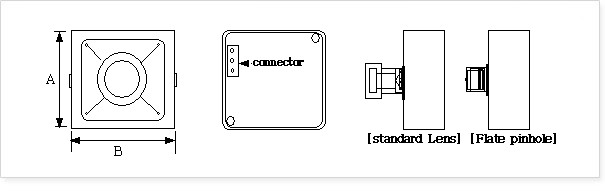

15.Dimension
22(H) X 22mm(W)
16.Applied Lens
4mm
17.Weight
180g
