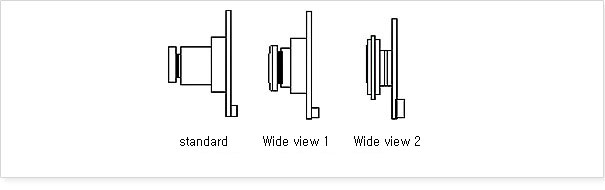

::: 소형CCD,CMOS모듈(표준,차량용,광각) :::
|
1.고감도 센서채용
2. VGA/ D1/ 960H
3. 광범위 전자 아이리스
4. 오토 화이트 밸런스
5. 자동차 후방감지/소형화제품/기타 application
6. OEM/ ODE |
|
|
|
 |
| ITEM |
DESCRIPTION |
ICM-X70PX(CMOS모듈)
30만 화소 |
ICM-5019(CCD모듈)
52만/61만 화소 |
| 1.Image Device |
Interline Transfer CCD |
| 2.Total Pixels |
VGA 648(H) X 488(V) |
NT : 1020(H) X 508(V)
PAL :1020(H) X 596(V) |
| 3.Scanning System |
2 : 1 Interlace |
| 4.Synchonization System |
internal |
| 5.Horizontal Resolution |
400 TV Line |
700 TV Line |
| 6.Sensitivity |
0.3 Lux |
0.1 Lux |
| 7.Electronic Iris (Linear) |
Auto (NTSC : 1/60 ~ 1/100,000sec PAL : 1/50 ~ 1/100,000sec) |
| 8.Signal Processing |
DSP |
| 9.Video Output |
1.0Vp-p ( - 10 ℃ ~ + 50℃ ), 75ohm |
| 10.S/N Ratio |
More than 46dB |
| 11.Power Supply |
12V DC(6V~30V)
5V DC(factory setting) |
12V DC(9V~16V) |
| 12.Power Consumption |
Max 40mA/ 120mA |
Max 100mA |
| 13.Operating Temperature |
- 10 ℃ ~ +50 ℃ |
| 14.Operating Humidity |
Max RH 95% |
| 15.Dimension |
24 X 15mm or OEM/ODM |
19x 19mm tow board |
| 16.Applied Lens |
1.8mm or options |
3.6mm or optiion |
| 17.connector |
1.27mm 5pin |
1.27mm 3pin |
|
|
|
|
|
|
|
|
|
