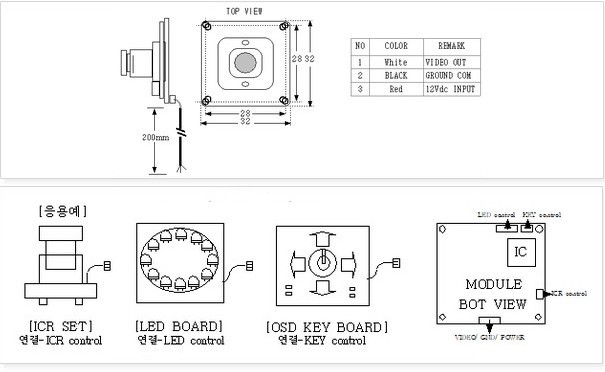

::: 메가픽셀 모듈카메라(고감도 Full HD) ::: 1. 2.1Mega Pixels Full HD 2. DSP 신호처리로 선명한화질 3. 스위칭POWER설계로 저전력소모 4. 오토 화이트 발란스로 알맞은 칼라유지 5. ICR Lens support 6. OSD support 7. IR LED control support 8. pcb 사이즈32x32mm 9. ODE, OEM 가능 ITEM DESCRIPTION NTSC(ICM-H2032MN) PAL(ICM-H2032MN) 1.Image Device 1/3" Interline Transfer 2.Effective Pixels 1944(H) X 1092(V) 3.Scanning System 2 : 1 Interlace 4.Synchonization System internal 5.Horizontal Resolution AHD 1080P(30) 6.Sensitivity 0.1 Lux 7.Electronic Iris (Linear) Auto (NTSC : 1/60 ~ 1/10,000sec PAL : 1/50 ~ 1/10,000sec) 8.Mirror Available(Horizontal/Vertical mirroring) 9.Video Output 1.0Vp-p ( - 10 ℃ ~ + 50℃ ), 75ohm AHD, CVBS (default AHD) 10.S/N Ratio More than 46dB 11.Power Supply 12 V DC(9V ~ 14V) 12.Power Consumption Max 120mA 13.Operating Temperature - 10 ℃ ~ +50 ℃ 14.Dimension 32 x 32 mm 15.Applied Lens Lens:3.6, or option(verifocal and others lens) 16.Option ICR LENS control /OSD setting
