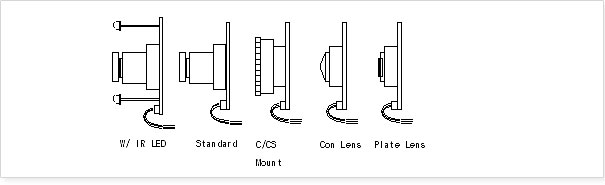

::: CCD모듈(Pinhole, Standard, C/CS, IR) ::: 1.고감도 CCD모듈(41/47만,52/60만) 2. 미로이메지 가능 3. 광범위 전자 아이리스 장착 4. DSP 깨끗한 영상처리 5. DC12V 입력 6. 다양한 모쥴타입:IR LED장착용,C/CS타입,                   핀홀타입,표준타입 ITEM DESCRIPTION ICM-4032 (41/47만화소) ICM-6032 (52/61만화소) 1.Image Device Interline Transfer CCD 2.Total Pixels NT--->811(H) X 507(V) PAL--->895(H) X595(V) NT--->1020(H) X 508(V) PAL--->1020(H) X596(V) 3.Scanning System 2 : 1 Interlace 4.Synchonization System internal 5.Horizontal Resolution 600 TV Line 700 TV Line 6.Sensitivity under 0.1 Lux 7.Electronic Iris (Linear) Auto (ntsc :1/60 ~ 1/100,000 sec pal:1/50 ~ 1/100,000 sec) 8.Video Output 1.0 Vp-p( -10% ~ +10%), 75 ohm 9.S/N Ratio more than 46 dB 10.Power Supply 12 V DC ( 9V ~ 16V) 11.Power Consumption max 110mA (Without LED) 12.Operating Temperature - 10 ℃ ~ +50 ℃ 13.Operating Humidity Max RH 95% 14.Weight 45g 15.Dimension 32x 32mm / or OEM 16.Applied Lens Regular Lens F : 3.6mm, 4mm Pinhole Lens F : 3.7 , 5.5 mm, C/CS mount ( Without Lens )
