::: 돔 카메라(ICA-600D/H600D) :::
1. 실내 설치(인테리어 디자인 적합)
2. 520K/610K Pixels CCD / 2.1M Pixels sensor
3. 오토화이트 바란스
4. 광범위 전자 조리개 내장
5. 12V dc 입력
ITEM
DESCRIPTION
ICA-600D
CCD: 520K / 600K PIXEL
ICA-H600D
CMOS: 2.1 Mega PIXEL
1.Image Device
Interline Transfer
2.Total Pixels
NTSC : 1020(H) X 508(V)
PAL : 1020(H) X 596(V)
NTSC/PAL : 1944(H) X 1092(V)
3.Scanning System
2 : 1 interlace
4.Synchronization System
Internal
5.Horizontal Resolution
700 TV Lines
AHD 1080P(30)
6.Sensitivity
0.1 LUX
0.3 LUX
7.Electronic Iris
Auto 1/60~1/100,000sec
Auto 1/60~1/10,000sec
8.Signal Processing
DSP
9.Video Output
1.0Vp-p(±10%),75ohm CVBS out
1V.0Vp-p(±10%),75ohm AHD out
10.S/N Ratio
More than 46dB
11.Power Supply
12V DC(9V ~ 14V)
12.Power Consumption
Max 100mA
13.Operating Temperature
- 10 ℃ ~ +50 ℃
14.Operating Humidity
Max RH 95%

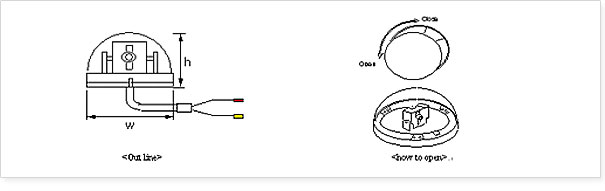

15.Dimension
120ø(H) X 77mm(W)
16.Applied Lens
4mm
17.Weight
160g
