::: CMOS 모듈카메라(고감도, CCTV) :::
|
1.고감도 CMOS모듈(40만화소,50만화소)
2.저전력 소모 (12V/40mA)
3.광범위 전자 아이리스
4.DC 12V in/ 5V in(factory setting)
5.CCTV,FA 등 적용 |
|
|
|
 |
| ITEM |
DESCRIPTION |
| ICM-4032PX(40만화소)
|
ICM-9032PX(50만화소)
|
| 1.Image Device |
Interline Transfer |
| 2.Effective Pixels |
762(H) X 504(V)
| 976(H) X 504(V)
|
| 3.Scanning System |
2 : 1 Interlace |
| 4.Synchonization System |
internal |
| 5.Horizontal Resolution |
540 TV lines
| 640 TV lines
|
| 6.Sensitivity |
0.3 Lux |
| 7.Electronic Iris (Linear) |
Auto (ntsc :1/60 ~ 1/100,000 sec pal :1/50 ~ 1/100,000 sec)
|
| 8.Video Output |
1.0 Vp-p( -10% ~ +10%), 75 ohm |
| 9.S/N Ratio |
more than 46 dB |
| 10.Power Supply |
12V DC(9V ~ 16V) / 5V DC(factory setting) |
| 11.Power Consumption |
Max 50mA / 100mA |
| 12.Operating Temperature |
- 10 ℃ ~ +50 ℃ |

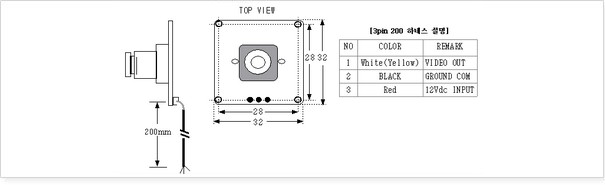

| 13.Dimension |
32 x 32mm |
| 14.Applied lens |
3.6mm, Option other lens |
| 15.connector |
1.25mm 3pin/ 2000mm harness/ bottom position |
|
|
|
|
|
|
|
|
|
