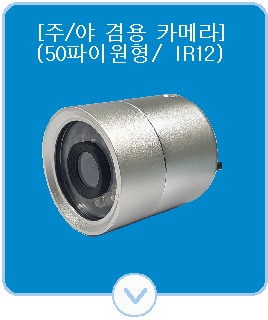

::: 주/야겸용 IRLED카메라(50파이, IR12):::
1. 실내 / 실외 (어두운곳 설치 적합)
2. 520K/610K Pixels CCD / 2.1M Pixels sensor
3. 센서에 의한 자동 on/off LED
4. DSP(Digital Signal Processing)
5. 광범위 전자 아이리스
6. 오토 화이트 밸런스
7. 기본 브라켓 포함
8. IR LED 12개장착
ITEM
DESCRIPTION
ICA-600WI
CCD: 520K / 600K PIXEL
ICA-H600WI
CMOS: 2.1 Mega PIXEL
1.Image Device
Interline Transfer
2.Total Pixels
NTSC : 1020(H) X 508(V)
PAL : 1020(H) X 596(V)
NTSC/PAL : 1944(H) X 1092(V)
3.Scanning System
2 : 1 interlace
4.Synchronization System
Internal
5.Horizontal Resolution
700 TV Lines
AHD 1080P(30)
6.Sensitivity
0.01 LUX
7.Electronic Iris
Auto 1/60~1/100,000sec
Auto 1/60~1/10,000sec
8.Signal Processing
DSP
9.Video Output
1.0Vp-p(±10%),75ohm CVBS out
1.0Vp-p(±10%),75ohm AHD out
10.S/N Ratio
More than 46dB
11.Power Supply
12V DC(9V ~ 14V)
12.Power Consumption
Max 300mA
13.Operating Temperature
- 10 ℃ ~ +50 ℃
14.Operating Humidity
Max RH 95%

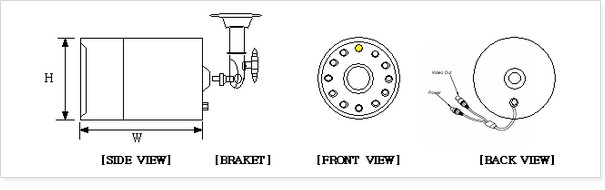

15.Dimension
50ø(H) X 56mm(W)
16.Applied Lens
4mm
17.Weight
280g
