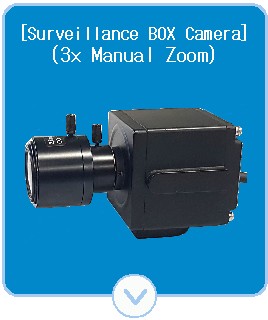

| ::: Suveillunce small BOX Camera (3x Manual) ::: |
1. High resolution , low illumination
2. 520K/610K CCD / 2.1M pixels sensor
3. 3x Manual zoom LENS type
5. Auto White Balance
6. Built-in Aperture Compensation
7. OSD Control(BLC, Mirror, ATW, Shutter, DEFOG, TITLE, etc..)
|
|
|
|
 |
| ITEM |
DESCRIPTION |
ICA-X30SZ
520KK/600K PIXELS |
ICA-H200SZ
2.1M PIXELS |
| 1.Image Device |
Interline Transfer |
| 2.Total Pixels |
NTSC : 1020(H) X 508(V)
PAL : 1020(H) X 596(V)
|
AHD : 1956(H) X 1266(V)
|
| 3.Scanning System |
2 : 1 interlace |
| 4.Synchronization System |
Internal |
| 5.Horizontal Resolution |
700 TV Lines |
AHD 1080 (30) |
| 6.Sensitivity |
0.1 Lux |
| 7.Electronic Iris |
Auto |
| 8.Video Output |
1.0Vp-p(±10%) 75ohm CVBS out |
1.0Vp-p(±10%) 75ohm AHD out |
| 9.S/N Ratio |
More than 46dB |
| 10.Power Supply |
12 V DC(9V ~ 14V) |
| 11.Power Consumption |
Max 110mA |
| 12.Operating Temperature |
- 10 ℃ ~ +50 ℃ |
| 13.Operating Humidity |
Max 95 RH 95% |
| 14.Lens |
3x Manual zoom
|
| 15.Mirror image |
OSD (On/Off) |
| 16.BLC |
OSD (On/Off) |

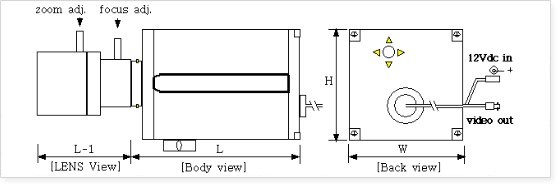

| 17.Dimension |
41mm(H) X 41mm(W) x 52mm(L) |
| 18.Weight |
200g |
|
|
|
|
|
|
|
|
|
