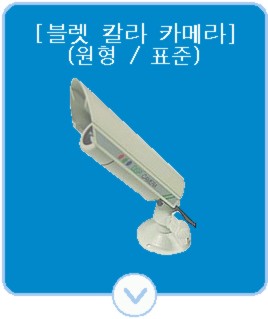

::: 블렛 칼라 카메라(IVC-4500W) :::
1. 실내 / 실외설치(좁은공간적합)
2. 전자 아이리스 내장
(NTSC: 1/60 ~ 1/100,000, PAL: 1/50 ~ 1/100,000)
3. 52만/60만화소 CCD
4. DSP(Digital Signal Processing)
ITEM
DESCRIPTION
NTSC
520K Pixels
PAL
600K Pixels
1.Image Device
Interline Transfer CCD
2.Total Pixels
NTSC : 1020(H) X 508(V)
PAL : 1020(H) X 596(V)
3.Scanning System
2 : 1 interlace
4.Synchronization System
Internal
5.Horizontal Resolution
700 TV Lines
6.Sensitivity
0.1 Lux
7.Electronic Iris
Auto(NTSC:1/60 ~ 1/100,000sec PAL:1/50 ~ 1/100,000sec)
8.Signal Processing
DSP
9.Video Output
1.0Vp-p ( - 10 ℃ ~ + 50℃ )
10.S/N Ratio
More than 46dB
11.Power Supply
12 V DC(9V ~ 14V)
12.Power Consumption
Max 100mA
13.Operating Temperature
- 10 ℃ ~ +50 ℃
14.Operating Humidity
Max RH 95%

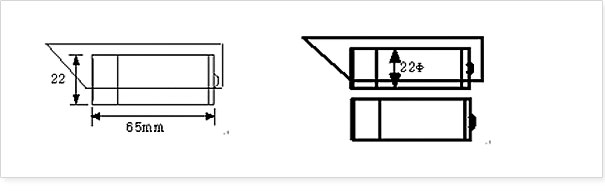

15.Dimension
22mm x 65mm
16.Applied Lens
3.6mm 및 기타
17.Weight
220g
