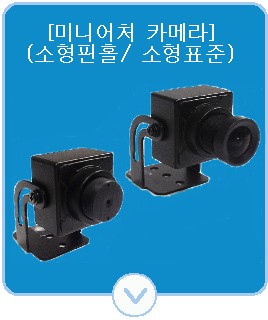

::: 미니어쳐 카메라(소형핀홀, 소형표준) :::
1. 외각사이즈(소형) : 22x 22mm
2. 40만/ 50만/ 52만/ 200만 화소
3. 전자 아이리스 내장
(Auto1/60~1/100,000, 1/60~1/10,000)
4. 오토 화이트 밸런스
5. DSP(Digital Signal Processing)
6. DC12V
ITEM
DESCRIPTION
ICA - 750S
40만/ 50만/ 52만 Pixels
ICA - H750S
CMOS:2.1 Mega Pixels
1.Image Device
Interline Transfer
2.Total Pixels
40만 : 762(H) x 504(V)
50만 : 976(H) x 504(V)
52만 CCD: 1020(H) x 508(V)
AHD : 1944(H) X 1092(V)
3.Scanning System
2 : 1 interlace
4.Synchronization System
Internal
5.Horizontal Resolution
500-700 TV Lines
AHD 1080P(30)
6.Sensitivity
< 0.1 Lux
< 0.3 Lux
7.Electronic Iris
< Auto 1/60~1/100,000
< Auto 1/60~1/10,000
8.Video Output
< 1.0Vp-p, 75ohm CVBS out
< 1.0Vp-p 75ohm AHD out
9.S/N Ratio
More than 46dB
10.Power Supply
12 V DC(9V ~ 14V)
11.Power Consumption
Max 100mA
12.Operating Temperature
- 10 ℃ ~ +50 ℃
13.Lens
Pinhole, Standard

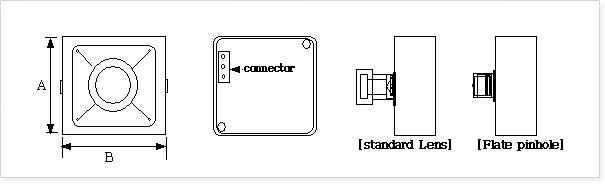

14.Dimension
22mm x 22mm
15.Weight
60g
