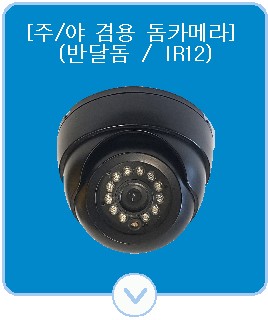

::: 주/야겸용 돔 카메라(반달돔, IR12) :::
주야간 감시 가능한 인테리어적 돔
1. 적외선 LED 자동 ON/OFF에 의한 효율적 동작
2. 520K/610K Pixels CCD / 2.1M Pixels sensor
3. 오토화이트 바란스
4. 광범위 전자 조리개 내장
5. IRLED 12EA 장착
6. 12V dc 입력
ITEM
DESCRIPTION
ICA-600DI
CCD: 520K / 600K PIXEL
ICA-H600DI
CMOS: 2.1 Mega PIXEL
1.Image Device
Interline Transfer
2.Total Pixels
NTSC : 1020(H) X 508(V)
PAL : 1020(H) X 596(V)
AHD : 1944(H) X 1092(V)
3.Scanning System
2 : 1 interlace
4.Synchronization System
Internal
5.Horizontal Resolution
700 TV Lines
AHD 1080P(30)
6.Sensitivity
0.01 LUX
7.Electronic Iris
Auto 1/60 ~ 1/100,000sec
Auto 1/60 ~ 1/10,000
8.Signal Processing
DSP
9.Video Output
1.0Vp-p(±10%),75ohm CVBS out
1V.0Vp-p(±10%),75ohm AHD out
10.S/N Ratio
More than 46dB
11.Power Supply
12V DC(9V ~ 14V)
12.Power Consumption
Max 300mA
13.Operating Temperature
- 10 ℃ ~ +50 ℃
14.Operating Humidity
Max RH 95%

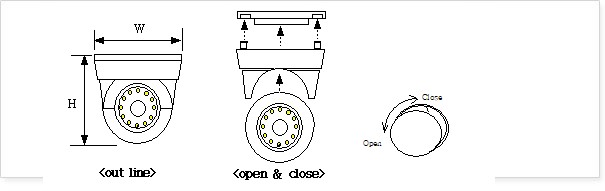

15.Dimension
50ø(H) X 56mm(W)
16.Applied Lens
4mm
17.Weight
160g
