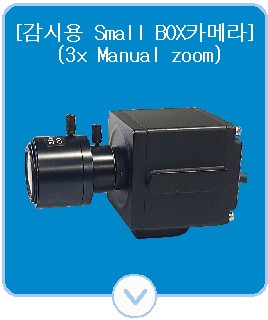

| ::: 감시용 small BOX 카메라(3x Manual) ::: |
1. 고감도, 고해상도 박스 카메라
2. 520K/610K Pixels CCD / 2.1M Pixels sensor
3. 오토 아이리스 콘트롤
4. 오토 화이트 밸런스

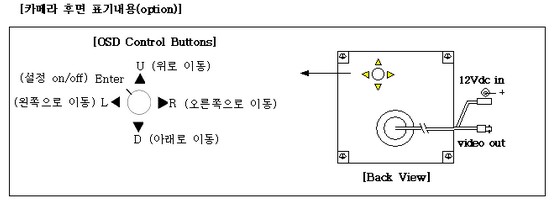

5. OSD Control (BLC, MIR, ATW, Shutter, DEFOG, etc..) |
|
|
|
 |
| ITEM |
DESCRIPTION |
ICA - X30SZ
520K/610K PIXELS |
ICA - H200SZ
2.1M PIXELS |
| 1.Image Device |
Interline Transfer |
| 2.Total Pixels |
NTSC : 1020(H) X 508(V)
PAL : 1020(H) X 596(V)
|
AHD : 1956(H) X 1266(V)
|
| 3.Scanning System |
2 : 1 interlace |
| 4.Synchronization System |
Internal |
| 5.Horizontal Resolution |
700 TV Lines |
AHD 1080P (30) |
| 6.Sensitivity |
0.1 LUX |
0.3 LUX |
| 7.Electronic Iris |
Auto |
| 8.Video Output |
1.0Vp-p(±10%),75ohm CVBS out |
1.0Vp-p(±10%),75ohm AHD out |
| 9.S/N Ratio |
More than 46dB |
| 10.Power Supply |
12V DC (9V ~ 30V) |
| 11.Power Consumption |
Max 100 mA |
| 12.Operating Temperature |
- 10 ℃ ~ +50 ℃ |
| 13.Operating Humidity |
Max 95 RH 95% |
| 14.Lens control |
4~9수동줌/2.8~12수동줌 렌즈
|
| 15.Mirror |
OSD (On/Off) |
| 16.BLC |
OSD(On/Off) |

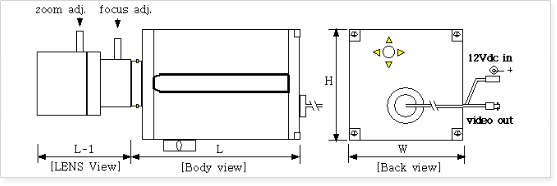

| 17.Dimension |
41mm(H)X41mm(W)x47mm(L) |
| 18.Weight |
220g |
|
|
|
|
|
|
|
|
|
